Specially designed for animals, using ergonomic principles, turbine drive, zero oxygen consumption, space-saving, and suitable for various complicated surgical scenarios.
Widely used in pet hospitals, animal clinics, and scientific research institutions, animal laboratories, and animal husbandry schools.
Wildlife rescue stations, school laboratories, training institutions, agricultural identification stations, etc
Suitable for 0.5-150Kg animal

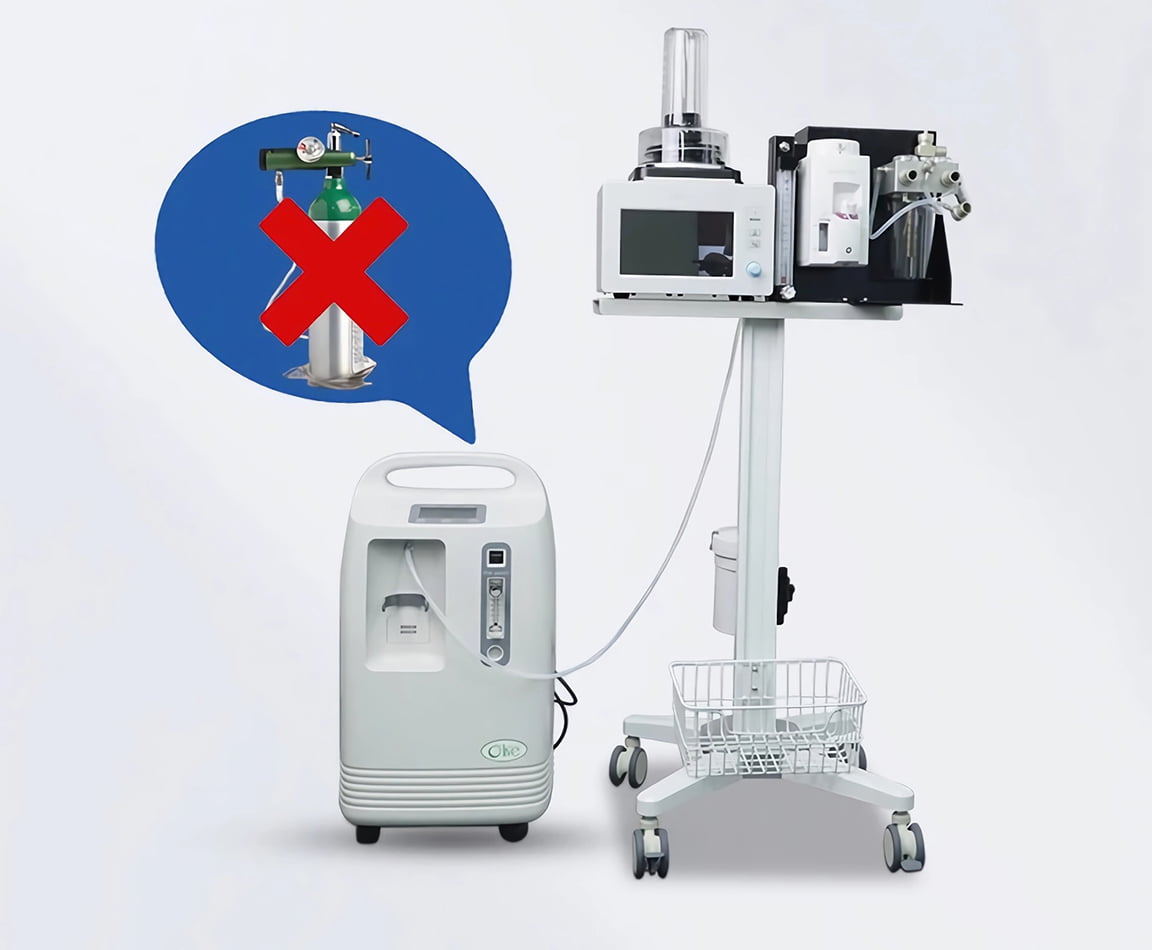

With Turbo Drive Ventilator, no drive gas needs, more cost effective and convenient
Automatically adjust the respiratory parameters once inputting animal weight
With a special Pop-Off Valve, which can maintains 2cm H2O2 continuous negative pressure to protect animal lungs during anesthesia
PEEP function: help veterinarians solve low SPO2 problems during surgery
Watch our veterinary equipment in real-world applications and see how it delivers precision, reliability, and exceptional performance in animal healthcare settings.
Detailed technical specifications and performance parameters for professional evaluation.
| Application | Animal Health Diagnosis, Animal Surgery, Clinic |
| Animal Range | 0.5–150kg |
| Ventilation Modes | VCV, PCV, VS, MANUAL, PRVC, SIMV-PC, SIMV-PRVC, CPAP/PSV |
| Tidal Volume | 0–300ml / 0–1500ml |
| Working Modes | AGGO and CGO |
| Monitoring | Tidal volume, Respiration Rate, I:E Ratio, Peak Pressure, Spontaneous Breathing, Mean Airway Pressure, PEEP, Insp. Pressure |
| Waveform | Pressure, Flow, Volume, Time |
| Flow Meter | 0–5 L/min |
| Vaporizers | Isoflurane, Sevoflurane, Halothane |
| CO₂ Absorber | Sodium Lime 500–750ml |
| Battery | Built-in battery ≥2 hours continuous operation |

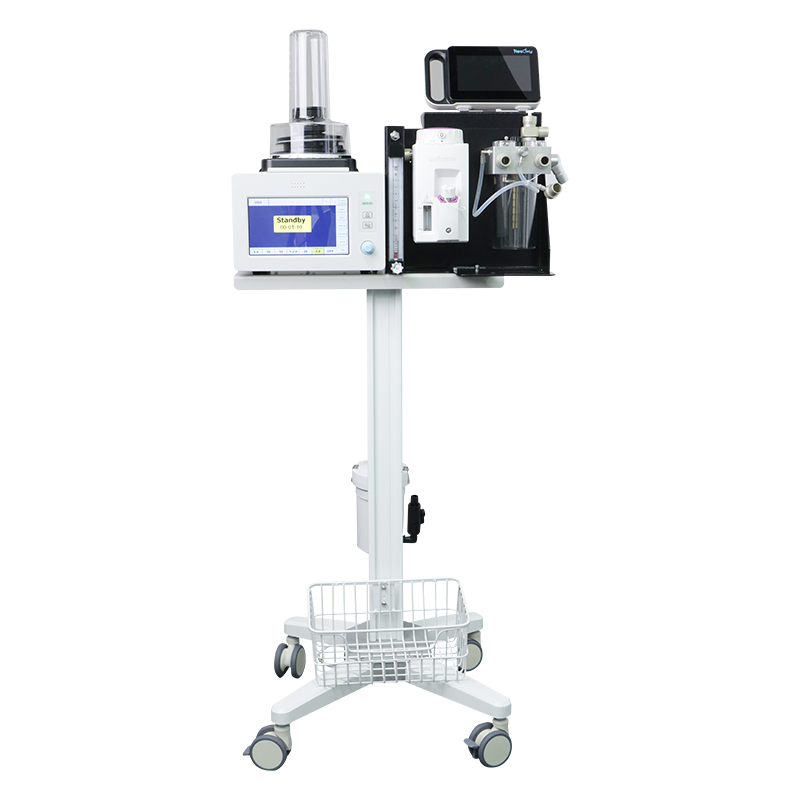

Combine ventilation, anesthetic delivery and essential controls in one mobile workstation.

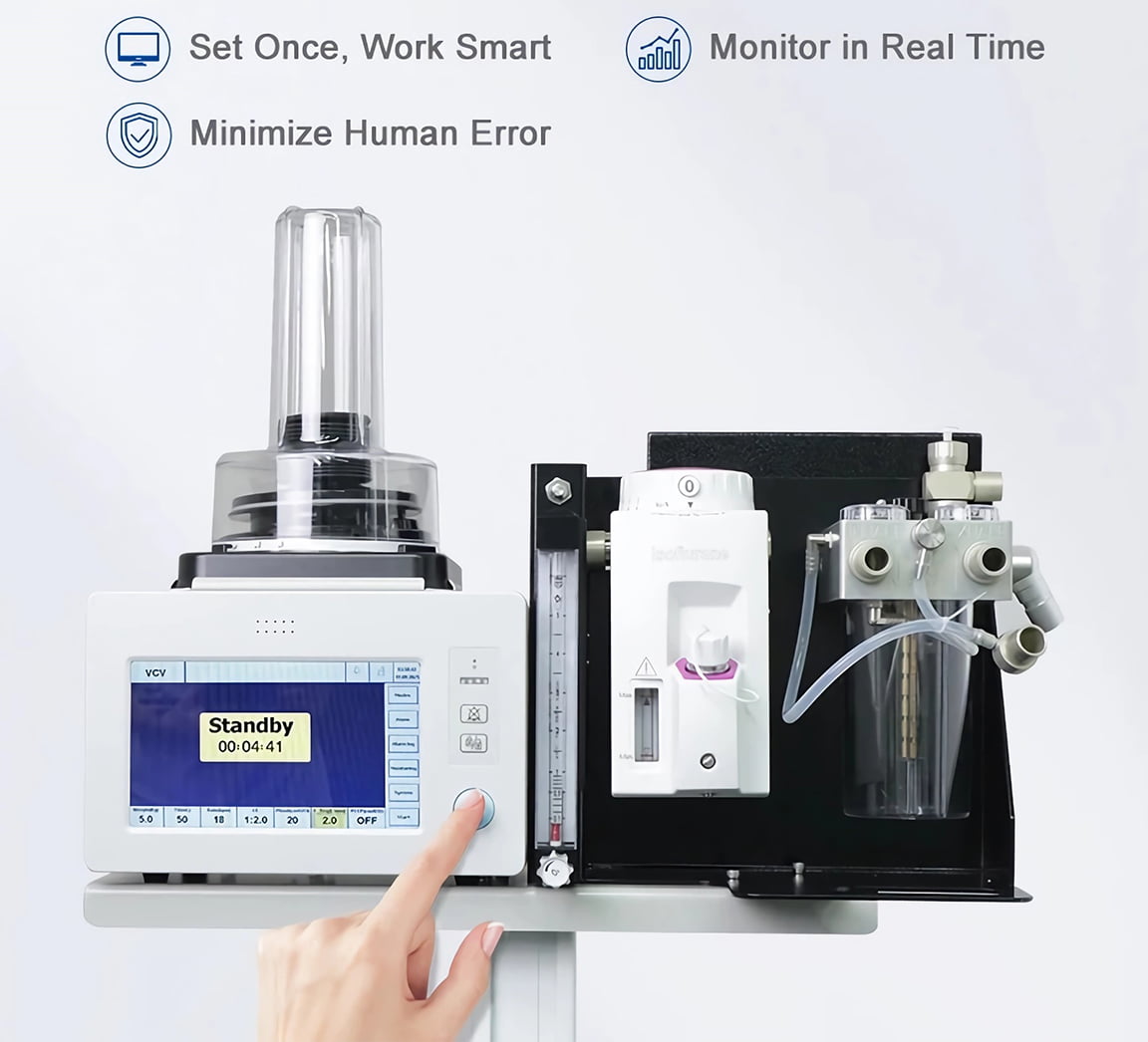

Enter patient weight to generate initial ventilation settings, with flexible controls for further adjustment.
Switch between controlled, spontaneous and manual ventilation modes to accommodate different clinical needs.
View essential respiratory parameters and waveforms on one screen for convenient ventilation monitoring.

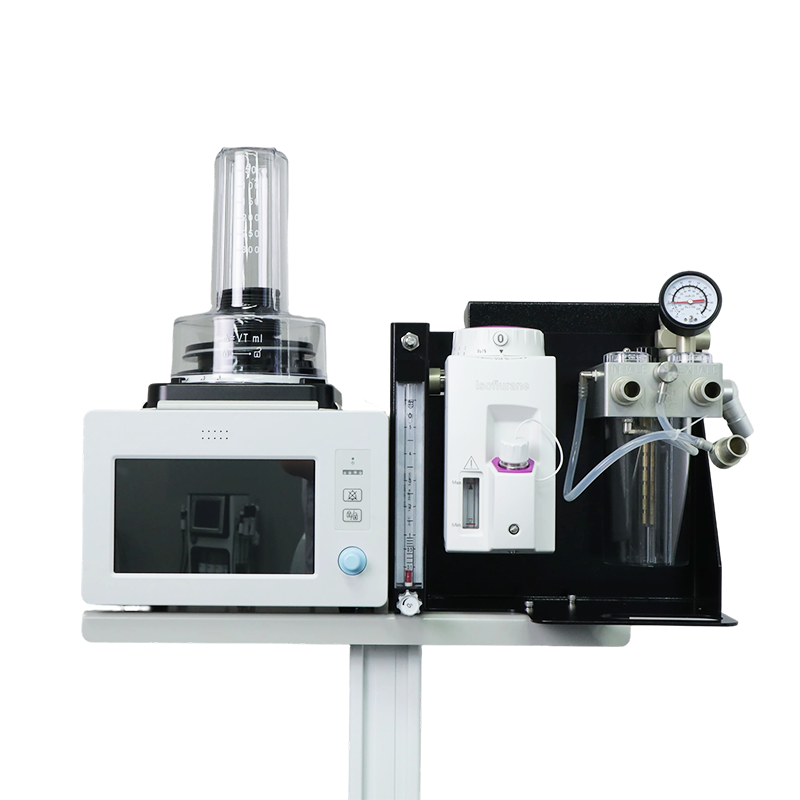

Manage oxygen flow, breathing systems and vaporizer settings from one conveniently arranged workstation.
Observe valve movement and airway pressure while keeping key breathing circuit components accessible for routine checks.
Customize the bellows, vaporizer, breathing system and trolley configuration to match your clinical workflow.
Choose from our standard configuration or customize with optional components to meet your specific requirements.
Contact our sales team for custom configuration options and pricing.
The VET-VT is designed for animals from 0.5 to 150 kg, with 0–300 mL and 0–1500 mL bellows. Enter the patient’s weight and it calculates the initial ventilation settings, which you can then fine-tune with the 9-inch touchscreen and rotary knob.
No. It uses a turbine-driven ventilator, so no oxygen or air is consumed to drive ventilation. This lowers running costs and works in clinics without a central gas supply.
VCV, PCV, VS, manual, PRVC, SIMV-PC, SIMV-PRVC and CPAP/PSV. It also has adjustable electric PEEP to help with low SpO2 during surgery, and a pop-off valve that protects the lungs.
Tidal volume, respiratory rate, I:E ratio, peak pressure, mean airway pressure, PEEP, inspiratory pressure and spontaneous breathing, with pressure, flow and volume waveforms on one screen.
Yes. The built-in battery provides at least 2 hours of continuous operation. The VET-VT runs on wide-voltage AC 110–230 V and ships with the plug type for your country. It works with isoflurane, sevoflurane or halothane vaporizers, has a 0–5 L/min flowmeter and a 500–750 mL soda lime canister.
Yes. OEM branding is available for distributors, the minimum order is 1 unit and standard lead time is 5–10 days. The VET-VT has a 3-year warranty, with spare parts, installation guidance and operator training.
The VET-V1 is an anesthesia machine without a ventilator for patients up to 150 kg, with O2 and air flowmeters and both rebreathing and non-rebreathing circuits. The VET-V5 adds a gas-driven IPPV ventilator for 5–150 kg patients. The VET-VT is a turbine-driven anesthesia workstation for 0.5–150 kg with 8 ventilation modes and electric PEEP. The VET-V8 is a turbine-driven workstation for 0.5–150 kg with a 10.1-inch touchscreen and active and passive scavenging. The VET-V9 is our top model for 0.8–150 kg, with tidal volume from 5 mL and EtCO2 and FiO2 monitoring. Tell us your main species, weight range and caseload, and we will recommend a configuration.
