Advanced Capnography
Monitoring Solutions

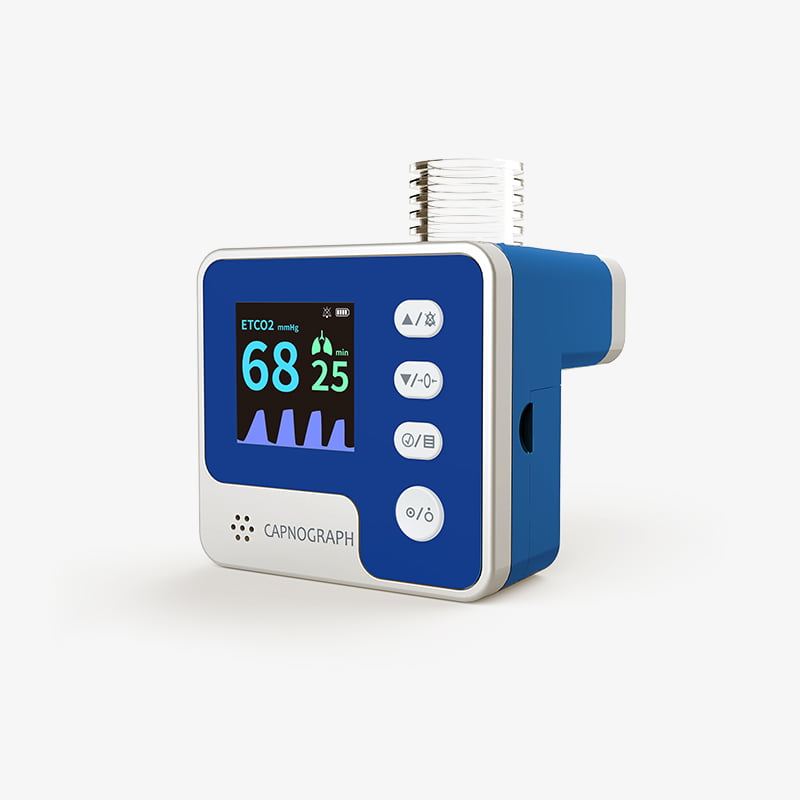

OliveVet veterinary capnographs measure end-tidal CO₂ during anesthesia, surgery and emergency care. Choose the palm-size VET-ET31 with SpO₂ and both mainstream and sidestream CO₂, or the 92 g VET-ET10 mainstream sensor.
Choosing a Veterinary Capnograph
| VET-ET31 | VET-ET10 | |
|---|---|---|
| Parameters | EtCO₂, SpO₂, pulse rate | EtCO₂, respiratory rate |
| CO₂ method | Mainstream and sidestream (both in the standard kit) | Mainstream |
| Measuring range | EtCO₂ 0–150 mmHg, ±2 mmHg (0–40 mmHg) | EtCO₂ 0–150 mmHg (1 mmHg resolution), ±2 mmHg (0–40 mmHg); RR 2–150 rpm; response <3 s |
| Display | 3.5" LCD, 480×320 | 1.3" TFT |
| Power | 4,000 mAh lithium, about 5 h | AAA battery, up to 4 h |
| Weight | About 360 g | 92 g |
| Warranty | 1 year | 1 year |
- Mainstream or sidestream. Mainstream sensors sit on the airway adapter and respond fast; sidestream sampling suits small patients and non-intubated animals. VET-ET31 ships with both.
- Stand-alone or combined. VET-ET10 adds EtCO₂ to any setup; VET-ET31 also measures SpO₂ and pulse rate, with species settings for cats, dogs and horses.
- Alarms. VET-ET10 has audible and visual alarms for over-limit values, adapter off and low battery.
- Already have a monitor? VET-VE7 offers EtCO₂ as an option, see our veterinary monitors.
Veterinary Capnograph FAQ
What does a veterinary capnograph measure?
End-tidal CO₂, the CO₂ level at the end of each breath, which shows ventilation status under anesthesia.
What is the difference between mainstream and sidestream?
Mainstream measures at the airway adapter; sidestream draws a gas sample through a tube to the monitor. VET-ET31 supports both.
Does it need calibration?
The VET-ET31 CO₂ module uses dual-wavelength measurement and needs no calibration.
What is the warranty?
VET-ET31 and VET-ET10 come with a 1-year warranty.
What are the MOQ and lead time?
MOQ is 1 unit and lead time is 5–10 days. OEM branding is available.
