Product Gallery (4 images)

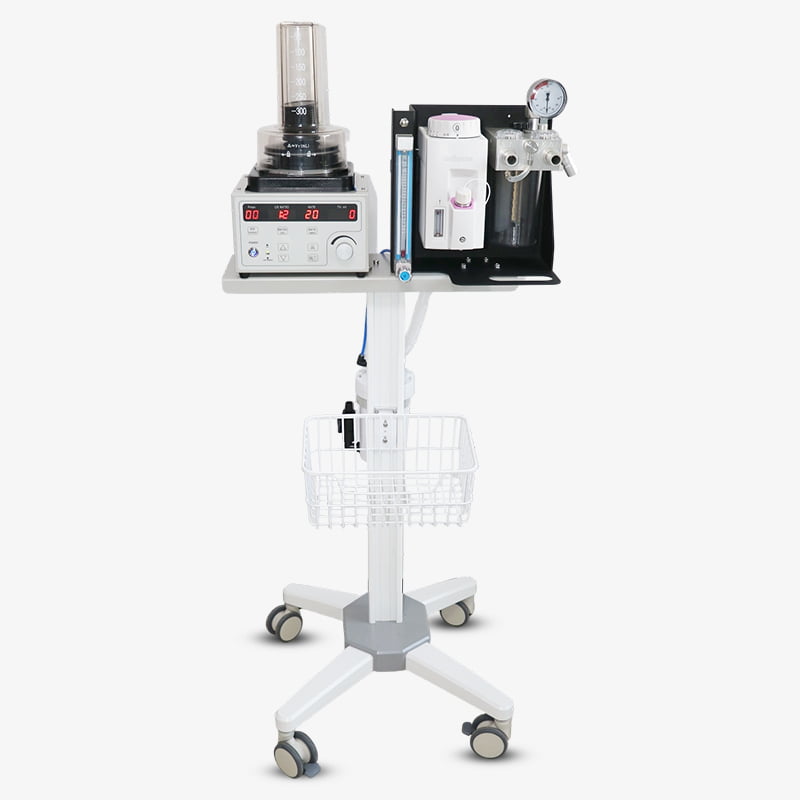

VET-V5 veterinary anesthesia ventilator provides precise respiratory support for animals up to 150 kg, ensuring stable ventilation and optimal oxygen delivery.
It not only improves anesthesia safety and surgical efficiency but also enhances monitoring accuracy.
Supports IPPV and Manual breathing modes to meet a wide range of surgical and research demands.
Supports non-rebreathing circuits (Jackson or Bain absorber) for precise gas control and low resistance.
External Reusable Soda Lime Canister transparent for easy monitoring.
The oxygen flush function ensures consistent oxygen delivery during high-demand periods in clinical anesthesia.
Built-in baery provides over 2 hours of connuous operaon — reliable even during power outages.
Detailed technical specifications and performance parameters for professional evaluation.
| Animal Range | 5-150KG |
| Application | Animal Health Diagnosis, Animal Surgery, Clinic |
| Working Mode | ACGO and CGO |
| Ventilation Mode | IPPV, MANUAL |
| Bellow | 0-300ml, 0-1500ml |
| Waveform | Pressure, Flow, Volume, Time |
| Monitor | Tidal Volume, Breathing Rate, I: E Ratio, Peak Airway Pressure |
| Driving Gas | O2 or Air; Inlet Pressure:0.35-0.65Mpa |
| Flow Meter | 0~5L/min |
| Vaporizer | Isoflurane, Sevoflurane, Halothane |
| CO2 Absorber | Sodium Lime Tank Capacity: 500ml-750ml |
Animals Up to 150kg Efficiently Manage Anesthesia and Respiratory Support for

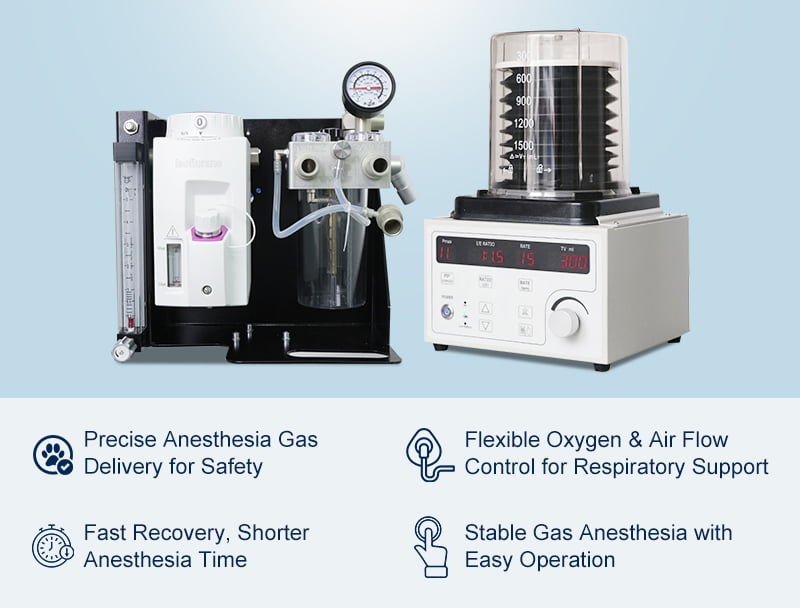

All-in-one design reduces setup time, improves workflow efficiency, and ensures stable anesthesia management
Accurately monitor tidal volume, airway pressure, and breathing rate in real time.
A professional airtight breathing circuit improves precision and reduces anesthetic consumption
Keep your OR running with straightforward checks and cleaning.
Choose from our standard configuration or customize with optional components to meet your specific requirements.
Contact our sales team for custom configuration options and pricing.

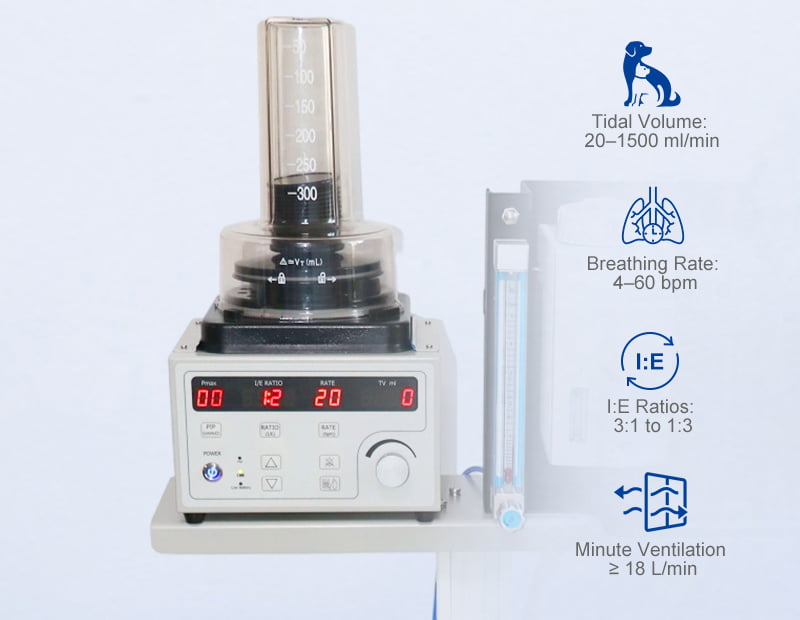

The VET-V5 is for animals from 5 to 150 kg. It has 0–300 mL and 0–1500 mL bellows, tidal volume from 20 to 1500 mL, breathing rate 4–60 bpm and I:E ratio from 3:1 to 1:3.
Yes. The V5 ventilator is gas-driven and uses oxygen or air at an inlet pressure of 0.35–0.65 MPa. If your clinic has no compressed gas supply, consider the turbine-driven VET-VT or VET-V8.
IPPV and manual ventilation, in ACGO and CGO working modes. It supports non-rebreathing circuits (Jackson-Rees or Bain) and has an external, transparent 500–750 mL soda lime canister and an oxygen flush.
Yes. The built-in battery provides more than 2 hours of continuous operation, so ventilation continues during a power outage. The VET-V5 runs on wide-voltage AC 110–230 V and ships with the plug type for your country.
Yes. We supply the VET-V5 factory-direct with OEM branding for distributors. The minimum order is 1 unit and standard lead time is 5–10 days. It has a 3-year warranty, with spare parts, installation guidance and operator training.
The VET-V1 is an anesthesia machine without a ventilator for patients up to 150 kg, with O2 and air flowmeters and both rebreathing and non-rebreathing circuits. The VET-V5 adds a gas-driven IPPV ventilator for 5–150 kg patients. The VET-VT is a turbine-driven anesthesia workstation for 0.5–150 kg with 8 ventilation modes and electric PEEP. The VET-V8 is a turbine-driven workstation for 0.5–150 kg with a 10.1-inch touchscreen and active and passive scavenging. The VET-V9 is our top model for 0.8–150 kg, with tidal volume from 5 mL and EtCO2 and FiO2 monitoring. Tell us your main species, weight range and caseload, and we will recommend a configuration.
