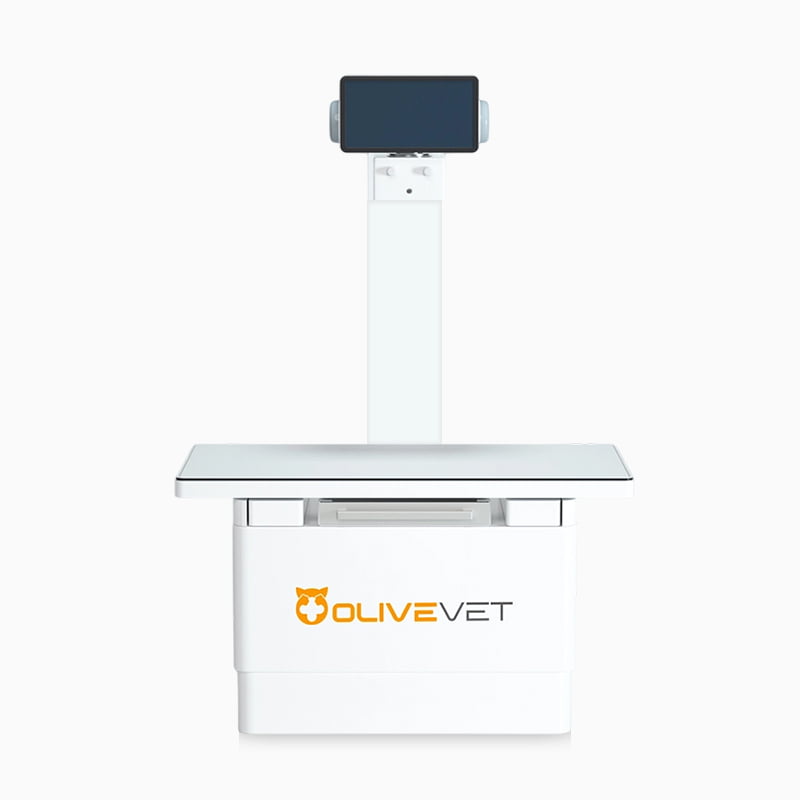

The VET-DR32 veterinary x-ray machine is a high-quality piece of veterinary equipment that provides accurate, fast, and cost-effective diagnostic imaging for a range of small animals.
The machine’s advanced features and benefits make it an essential piece of equipment in animal healthcare facilities.
With continuous technological advancements, these veterinary X-ray machines will become more effective in future animal healthcare practices.

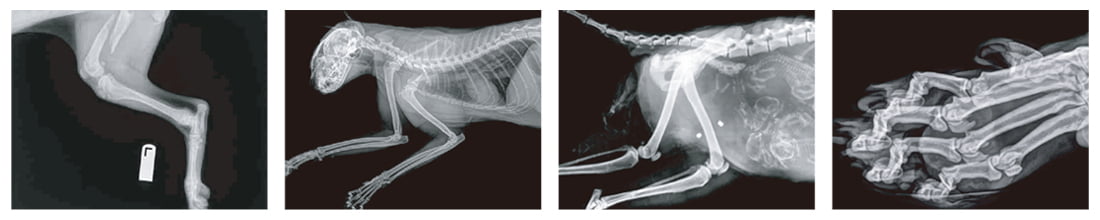

Suitable for all main kinds of examinations in the small animal veterinary field
The system is completed with 32 kWX-ray generator

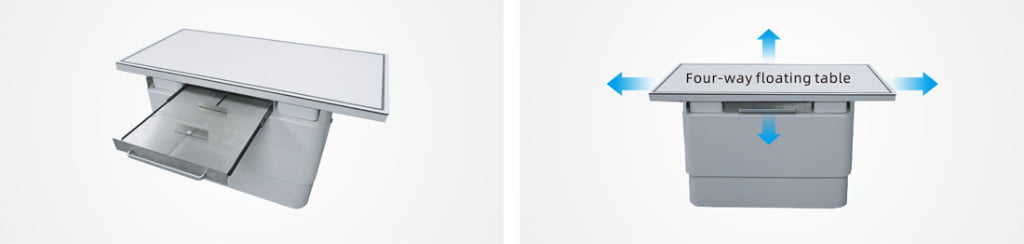

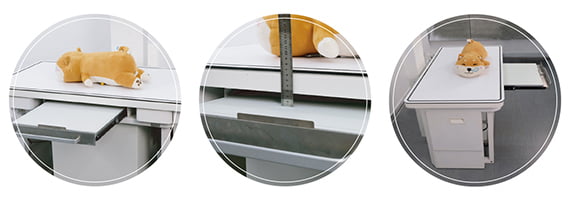

Table top floats in four directions with a foot operated pedal
Intended for use in general projection radio-graphic applications wherever conventional screen film,CR, or DR systems may be used
Watch our veterinary equipment in real-world applications and see how it delivers precision, reliability, and exceptional performance in animal healthcare settings.
Detailed technical specifications and performance parameters for professional evaluation.
| Application | Animal Surgery, Animal Healthcare, Veterinary Clinic |
| Generator Power Voltage | 1-phase 220VAC±10, 50Hz,16A; 3-phase 380VAC±10% |
| Maximum Working Frequency | ≥30KHz |
| Generator Nominal Electric Power | 20kw(@100kv, 200mA, 100ms)/32kw(@100kv, 320mA, 100ms) |
| Generator KV Range | 40-125KV |
| Generator mA Range | 10-320mA/10-400mA |
| Photoformy Time | 3ms-6300ms |
| X-ray Tub Working Voltage | 40KV-125KV |
| Maximum Power( 0.1 S) | Small focus 20 kw, Large focus 40 kW |
| X-ray Tub Nominal Value | Large focus 2.0, Small focus 1.0 |
| Maximum Heating Filament Characteristics | 5.3A |
| Anode Speed (50HZ) | 2800rpm |
| Anode Angle | 12° |
| Inherent Filtering | 1.0mmAL/75kV |
| Anode Heat Content | 110KJ(150KHU) |
| Tube Component Heat Capacity | 900KJ(1300KHU) |
| Warranty | 1 Years |

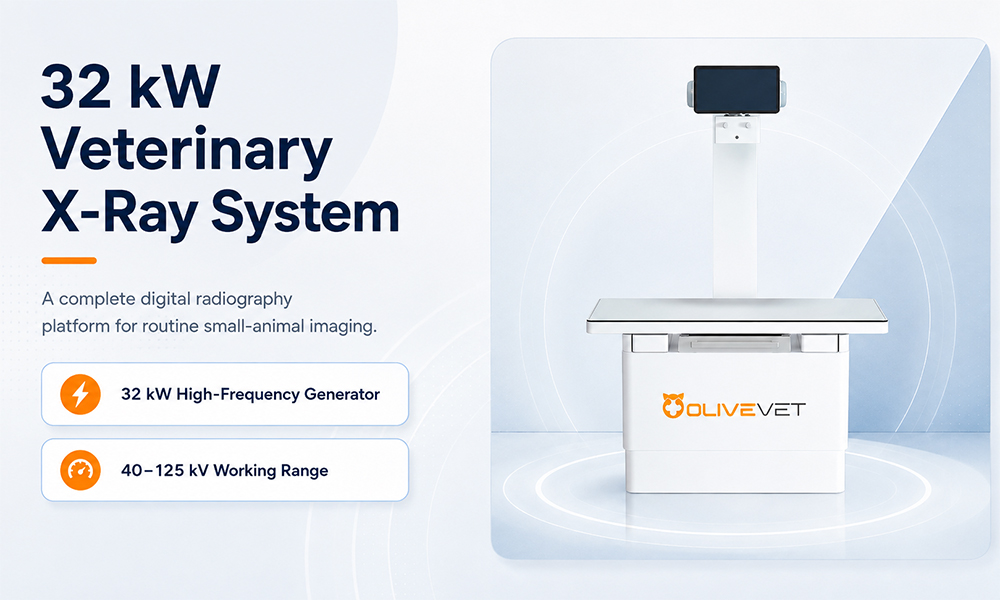

A complete digital radiography solution designed for routine veterinary imaging, combining reliable X-ray performance with an integrated examination platform.

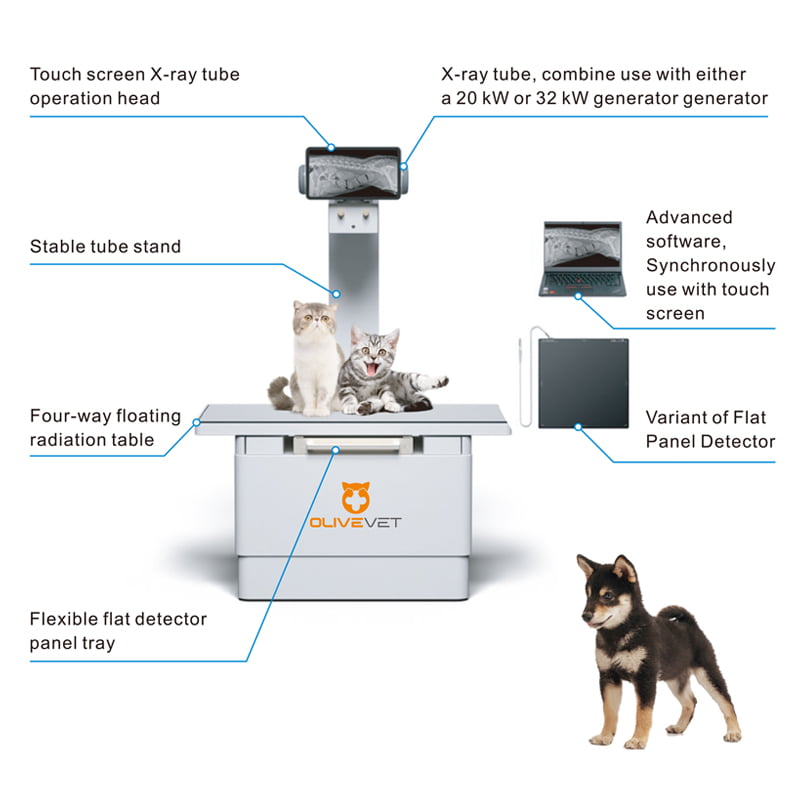

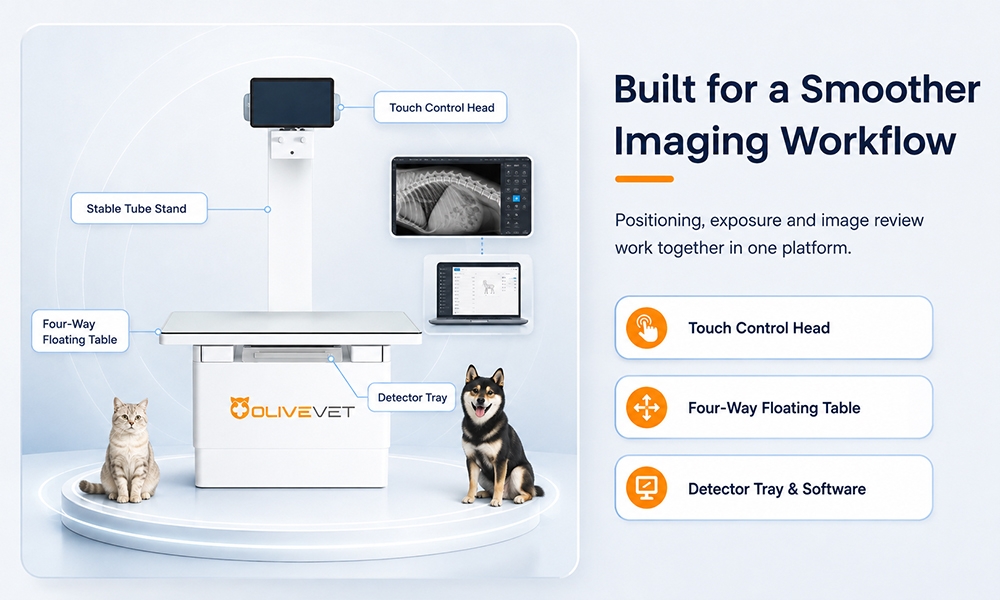

Positioning, exposure control and image review work together in one integrated platform, helping veterinary teams simplify everyday radiography procedures.

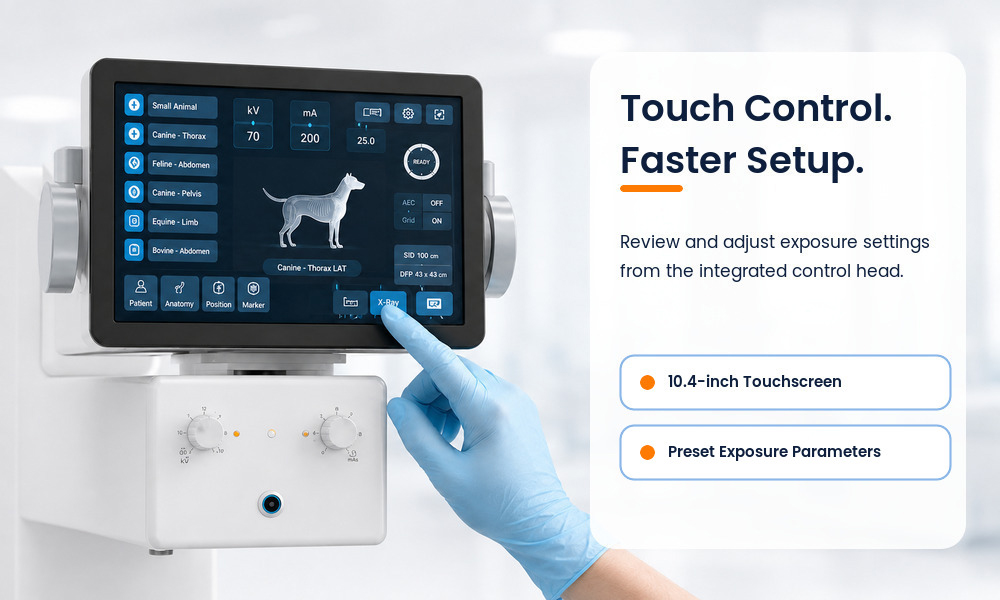

Adjust exposure parameters directly from the integrated touchscreen, helping operators reduce repetitive setup steps during routine examinations.

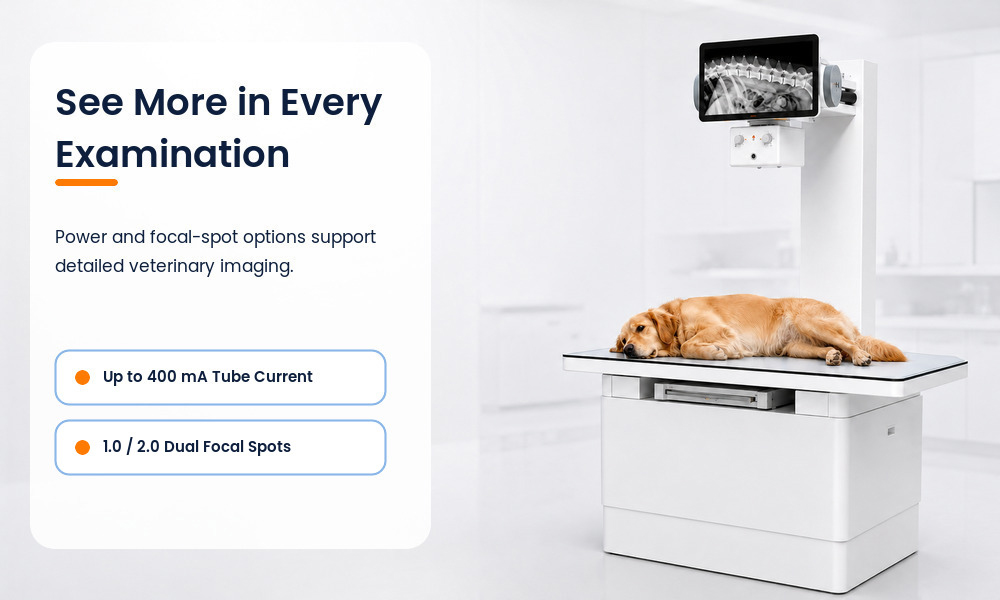

A wide tube-current range and dual focal-spot configuration provide greater flexibility for different animal sizes and veterinary imaging requirements.

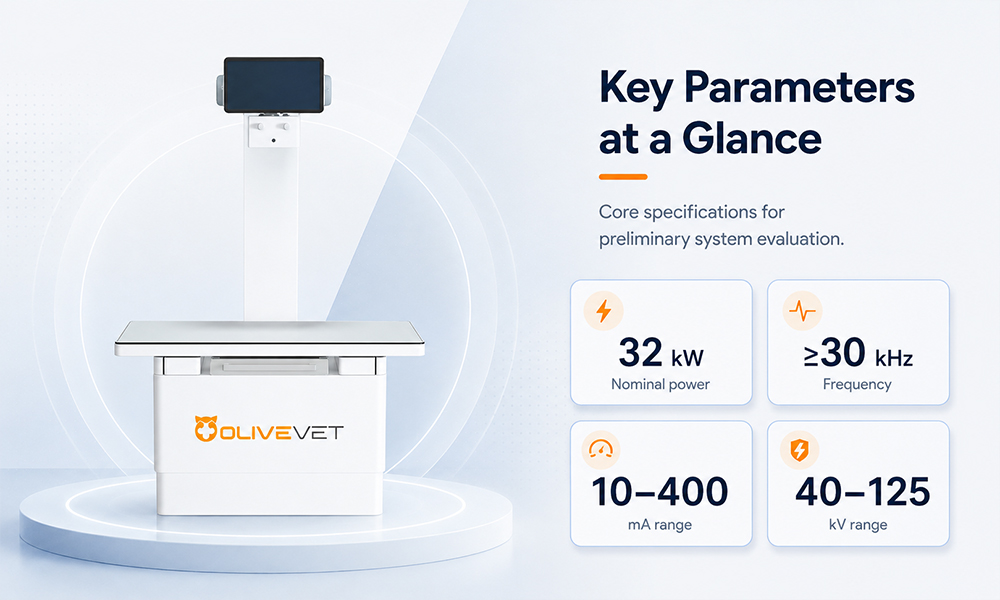

Key generator specifications provide veterinary equipment buyers with a clear overview for preliminary system evaluation and clinic planning.
Tell us about your animal types, examination volume and imaging requirements. Our team can recommend a suitable system configuration for your practice.
Q1: What is the warranty period for the X-ray machine?
A: The complete X-ray machine comes with a one-year warranty, and we also provide lifetime maintenance support.
Q2: Do you have an after-sales service team?
A: Yes. We have a dedicated after-sales service department, and our team works in two shifts to provide timely support.
Q3: Are spare parts free during the warranty period?
A: Yes. If any parts need to be replaced during the warranty period, we will provide the required spare parts free of charge and guide the customer’s engineers through the replacement.
Q4: Can your engineers provide overseas on-site service?
A: Yes. We have more than ten years of overseas sales and support experience. If necessary, our engineers can travel abroad for installation, commissioning, or technical support.
Choose from our standard configuration or customize with optional components to meet your specific requirements.
No optional accessories available.
Contact our sales team for custom configuration options and pricing.
