The is a compact veterinary patient monitor designed for surgery, recovery and routine clinical monitoring. It displays essential vital signs on one clear screen and supports flexible installation across different veterinary environments.
Click to enlarge
Tap
1 / 1
Product Gallery (5 images)
1
2
3
4
5
Veterinary Patient Monitor for Real-Time Vital Signs Monitoring
Key Features
5-in-1 monitoring: ECG, SpO₂, NIBP, RESP and TEMP
Clear 12.1″ TFT display
Built-in battery for patient transport
7-day data recall
Desktop, wall or cart mounting
See It in Action
Watch our veterinary equipment in real-world applications and see how it delivers precision, reliability, and exceptional performance in animal healthcare settings.
Product Specifications
Detailed technical specifications and performance parameters for professional evaluation.
| Multiparameter Veterinary Monitor | 12.1 Inch High-resolution Color TFT LCD Screen |
| Standard Parameters | SpO2, PR/HR, NIBP, ECG, RESP, 2-TEMP |
| Features One | 400 groups of NIBP list, 6000 seconds ECG waveform recall, 60 alarm evens records recall, 7-day trend chart in storage |
| Features Two | Wire/wireless central monitoring system applicable to ICU/CCU/OR |
| Analysis Detection Function | Real-time S-T segment Analysis, Pacemaker Detection |
| Alarm Function | 3-level audio/visual alarming |
| Net & Gross Weight | 4.6 KG / 6 KG |
| Package | 380mm * 350 mm * 300mm |
| 8 Languages Support | English, Romanian, Spanish, French, Turkish, Italian, Russian, Portuguese |
| Warranty | 1 Years |
Surgery-Ready Veterinary Monitoring
Reliable vital-sign monitoring for veterinary surgery, recovery and critical care.
- 12.1″ display
- Five vital parameters
- Battery-powered

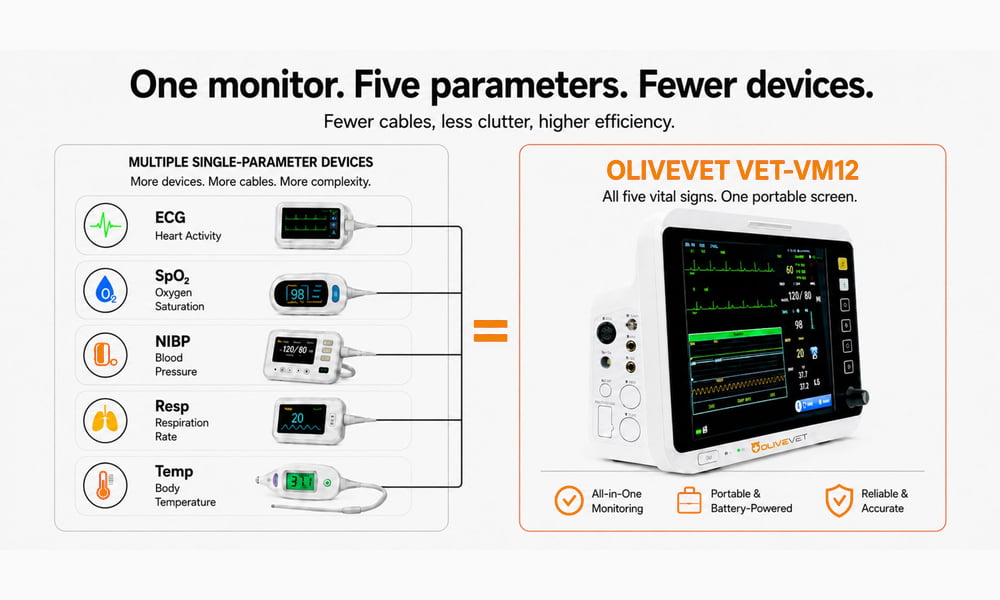

Five Vital Signs in One Monitor
Consolidate essential patient data on one screen for a clearer, more efficient workflow.
- ECG, SpO₂ and NIBP
- RESP and temperature
- Fewer devices and cables
Clear Display, Compact Design
Review waveforms and readings clearly without taking up excessive clinical space.
- 12.1″ TFT display
- Compact 5.3″ depth
- CO₂ monitoring optional
Continuous Monitoring During Transport
Maintain patient monitoring while moving between surgery and recovery areas.
- Built-in battery
- Up to 2-hour monitoring
- Extra battery available
Flexible Installation for Any Clinic
Choose the mounting method that best fits your available space and workflow.
- Desktop placement
- Wall mounting
- Mobile cart mounting
Review Every Case with Confidence
Stored readings, alarm events and trends support convenient postoperative review.
- 400 NIBP readings
- 6,000s ECG storage
- 7-day data recall
Product Configuration
Choose from our standard configuration or customize with optional components to meet your specific requirements.
Standard Configuration
12.1” screen Veterinary Monitor (Main Unit)
1 pc
Power Cord
1 pc
Veterinary 5-lead ECG cable
1 pc
Veterinary SpO2 sensor
1 pc
Veterinary NlBP cuff
1 pc
NIBP Extension Hose
1 pc
Veterinary Temp sensor
1 pc
Battery
1 pc
User Manual
1 pc
Optional Accessories
ETCO2 Sidestream
ETCO2 Mainstream
2-IBP
Thermal Printer
Touch Screen
Wall Mount
Portable Trolley
Contact our sales team for custom configuration options and pricing.
