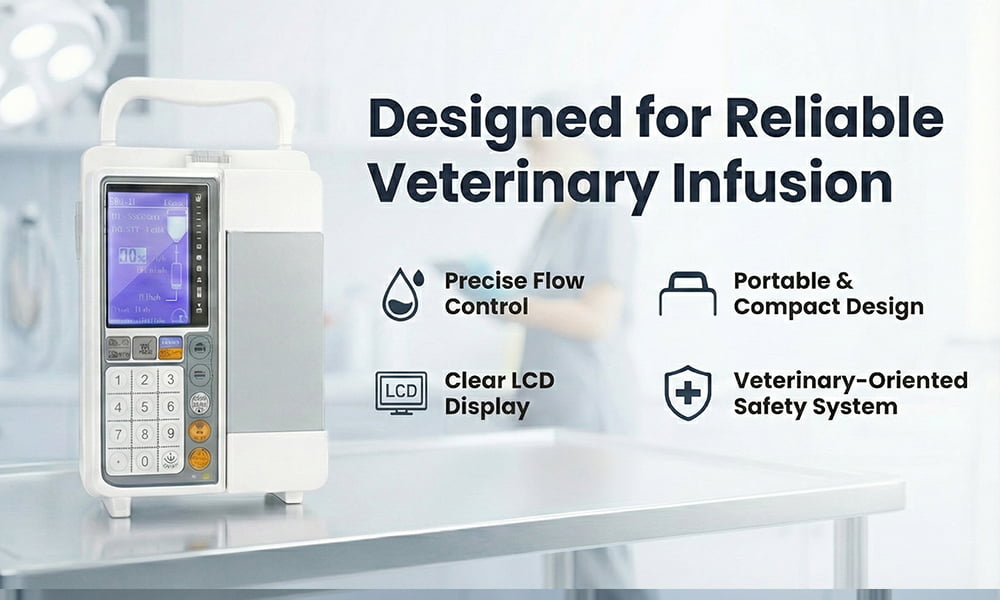

The veterinary infusion pump has the classic vertical design.
The software compensates for errors within 59 after calibration.
Adjustable level setting and occlusion pressure release function make it commonly acceptable by the veterinary hospital.

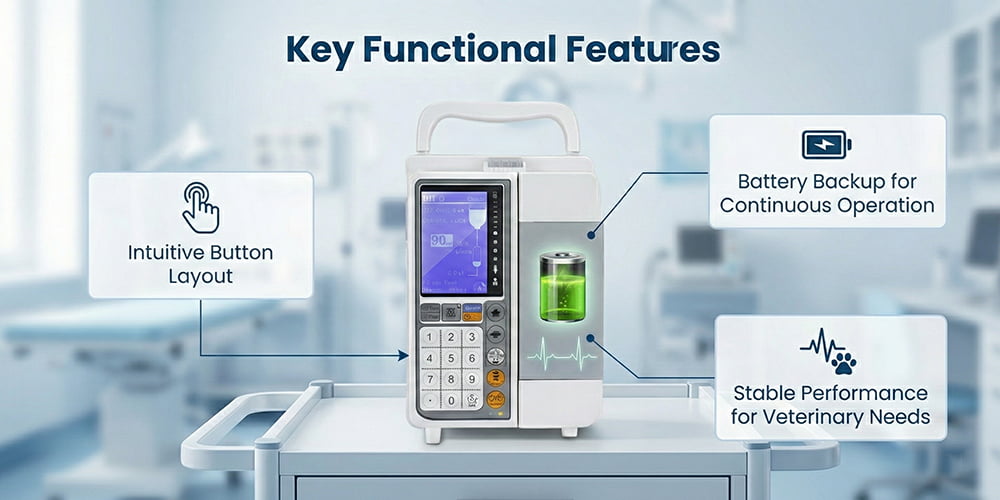

Double CPU and numeric keypad make it safe and more user-friendly.

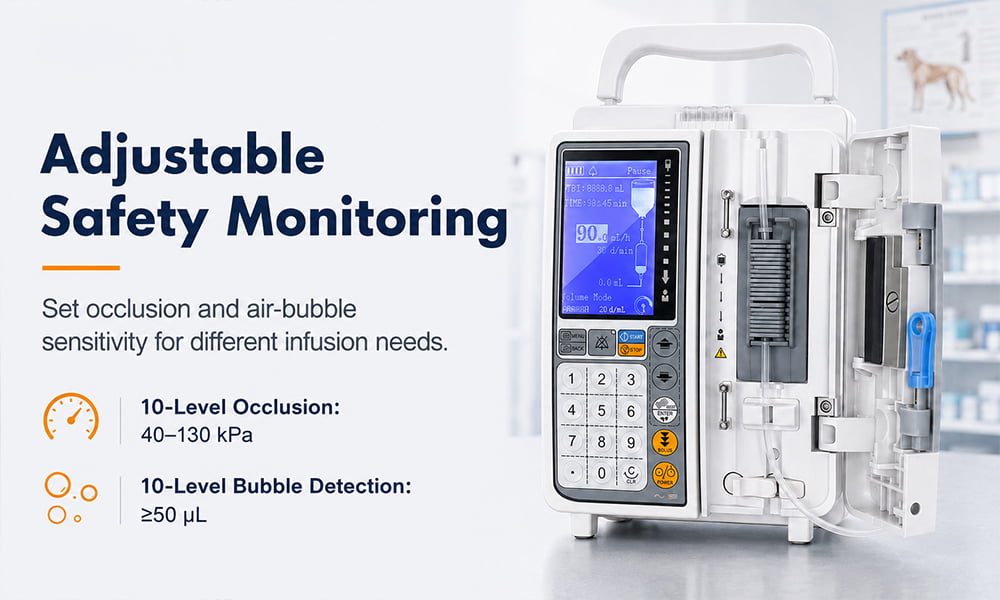

Adjustable Levels Setting: 10-level setting for occlusion and air bubble volume
Strong Battery Backup: 3000mAh battery and backup time more than 10 Hours.
Occlusion Release Function: Occlusion pressure release and restarting function
Infusion Mode: Volume mode, time mode
Watch our veterinary equipment in real-world applications and see how it delivers precision, reliability, and exceptional performance in animal healthcare settings.
Detailed technical specifications and performance parameters for professional evaluation.
| Infusion Mode | Volume Mode, Time Mode, Drug Mode |
| Rate Unit | ml/h, volume/time, d/min |

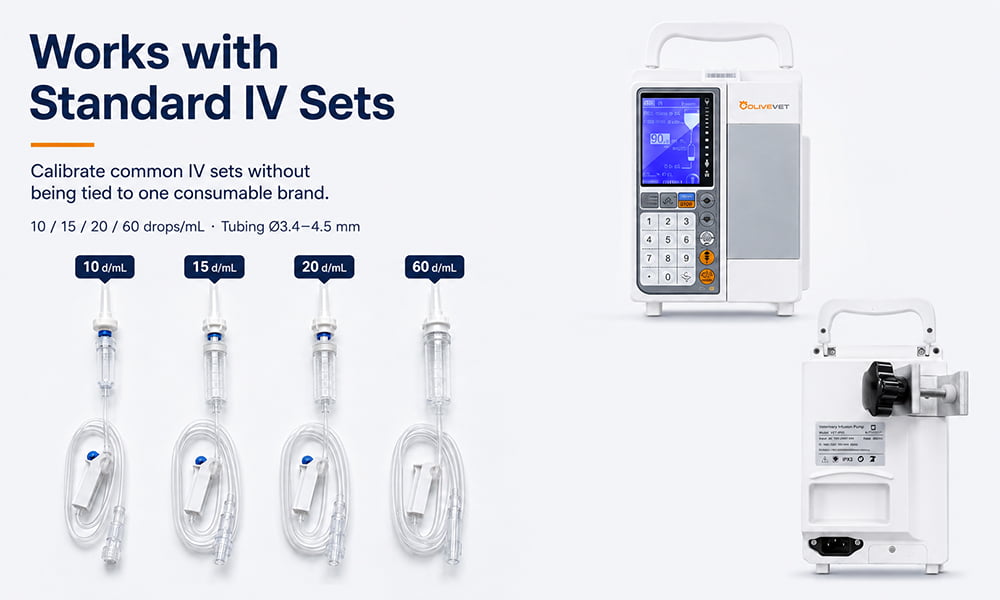

| IV Sets | Standard Single Use IV sets (10,15,20,60d/mL, with diameter 3.4~4.5mm) |
| Flow Rate | 1.0ml/h～1200ml/h |
| Increment | 1.0-99.9ml/h in 0.1ml/h Step 100-1200ml/ in 1ml/h Step |
| Total Volume | 0.0～9999.9 ml |
| Keypad | Numeric Keypad |
| Screen | 3.2 Inch Brightness LCD (Screen to be dim automatically in 5mins after standby time expired.) |
| Battery | Rechargeable Lithium Battery, DC11.1V, 3000mAh；Operating Time: ≥10h @25ml/h, Displaying Remaining Battery |
| Power Supply | AC Power：100V～240V，50Hz/60Hz，≤25VA |

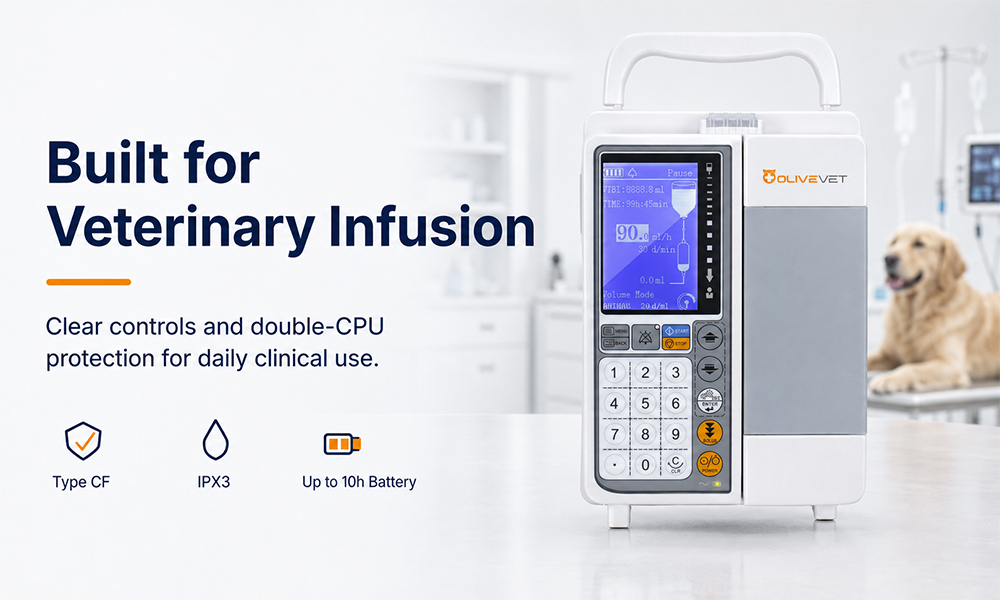

Clear controls and double-CPU protection support everyday veterinary infusion workflows.

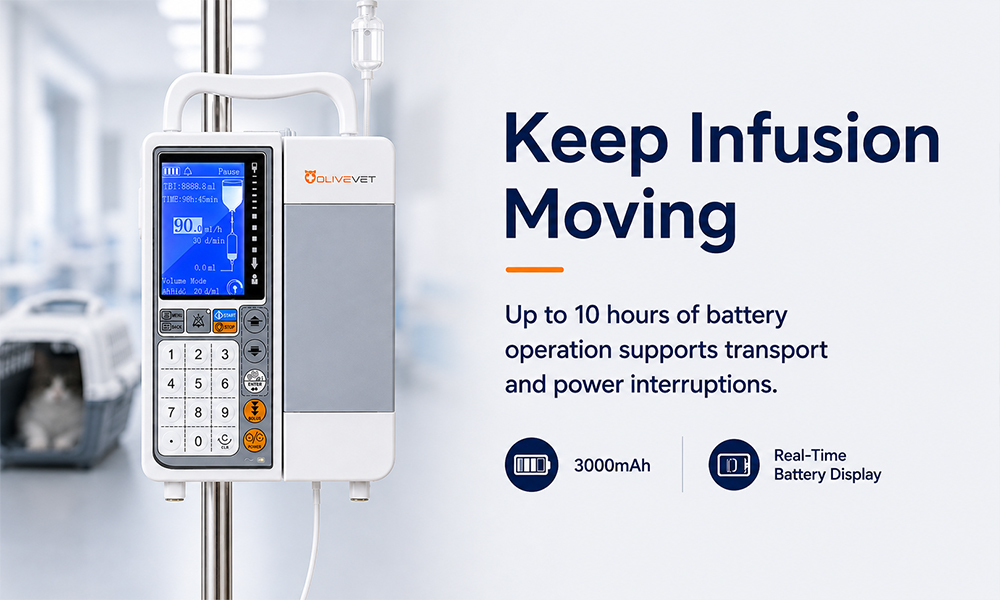

Up to 10 hours of battery operation supports patient transport and temporary power interruptions.
Adjustable detection settings help accommodate different veterinary infusion needs.

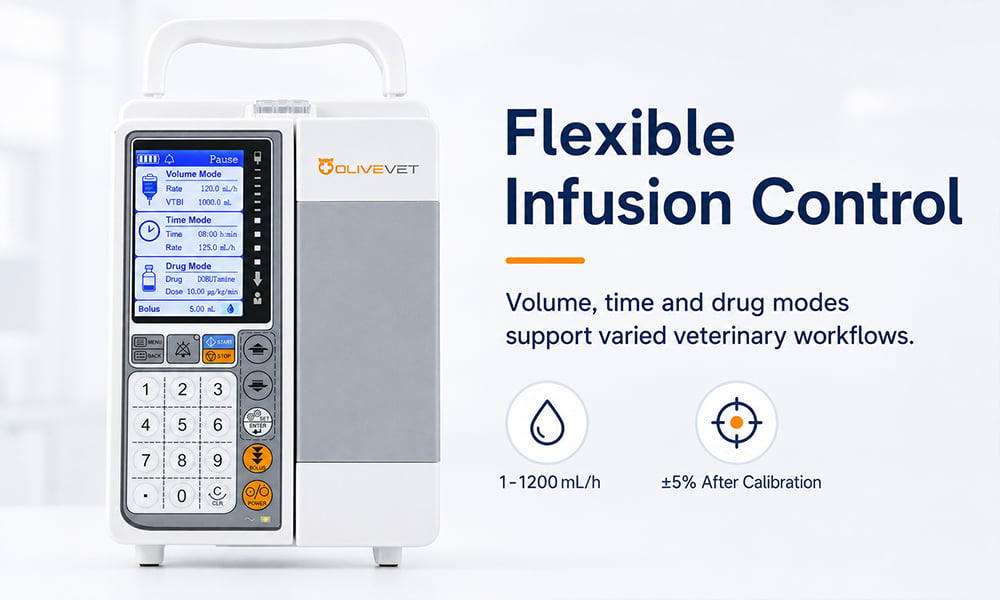

Multiple infusion modes provide greater flexibility for daily clinical use.
Compatible with commonly used IV sets after calibration.
Choose from our standard configuration or customize with optional components to meet your specific requirements.
No optional accessories available.
Contact our sales team for custom configuration options and pricing.
